Metrios
1. Measuring Systems
Mechrise METRIOS optical measuring systems are designed for advanced dimensional inspection directly on the shopfloor. Modern manufacturing demands faster, smarter, and more accurate quality control solutions, and METRIOS delivers high-speed non-contact optical measurement for precision components.
Equipped with integrated displays, intelligent software, and high-resolution optical systems, METRIOS combines innovation, speed, and reliability in a single measuring platform.

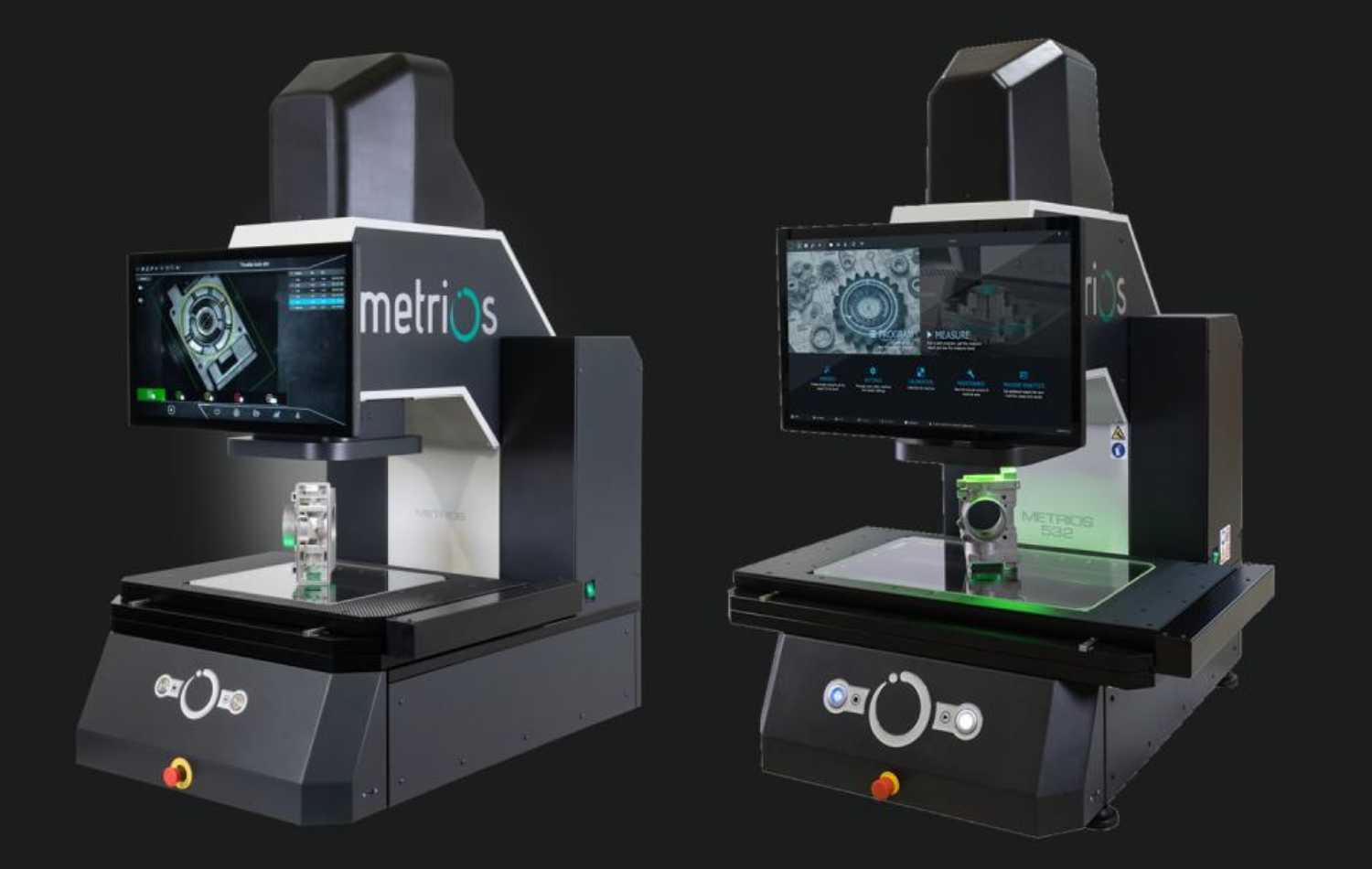

ALL-IN-ONE Measuring Systems
METRIOS 332 and METRIOS 532 are advanced all-in-one optical measuring systems designed for direct shopfloor operation. These systems combine precision, ease of use, speed, and complete inspection capability within a single instrument.
- Measuring range up to 300 x 300 x 200 mm
- Measuring range up to 500 x 300 x 200 mm
- Supports components up to 20 kg
- High-speed wide-field optical sensor
- Ultra-high magnification inspection capability
- Advanced lighting system for difficult surfaces
Measurement for Medium & Large Components
METRIOS and METRIOS CROSS are designed for manufacturers working with medium and large precision components across industries such as automotive, aerospace, and medical manufacturing.
These systems allow inspection of single components within seconds or simultaneous inspection of multiple parts to improve production efficiency.
Measurement for Micro Components
METRIOS HD and METRIOS HD CROSS are developed specifically for micro-components and ultra-precision applications including watchmaking, dental implantology, biomedical devices, and precision mechanics.
These systems provide extremely high-resolution inspection for very small and complex geometries with exceptional accuracy.
METRIOS RE-LIGHT
METRIOS RE-LIGHT is an advanced optical measuring machine equipped with a rotary axis for inspecting flat and cylindrical components in a single cycle.
The system automatically identifies reference points and measures multiple surfaces without continuous repositioning by the operator, improving speed and inspection efficiency.

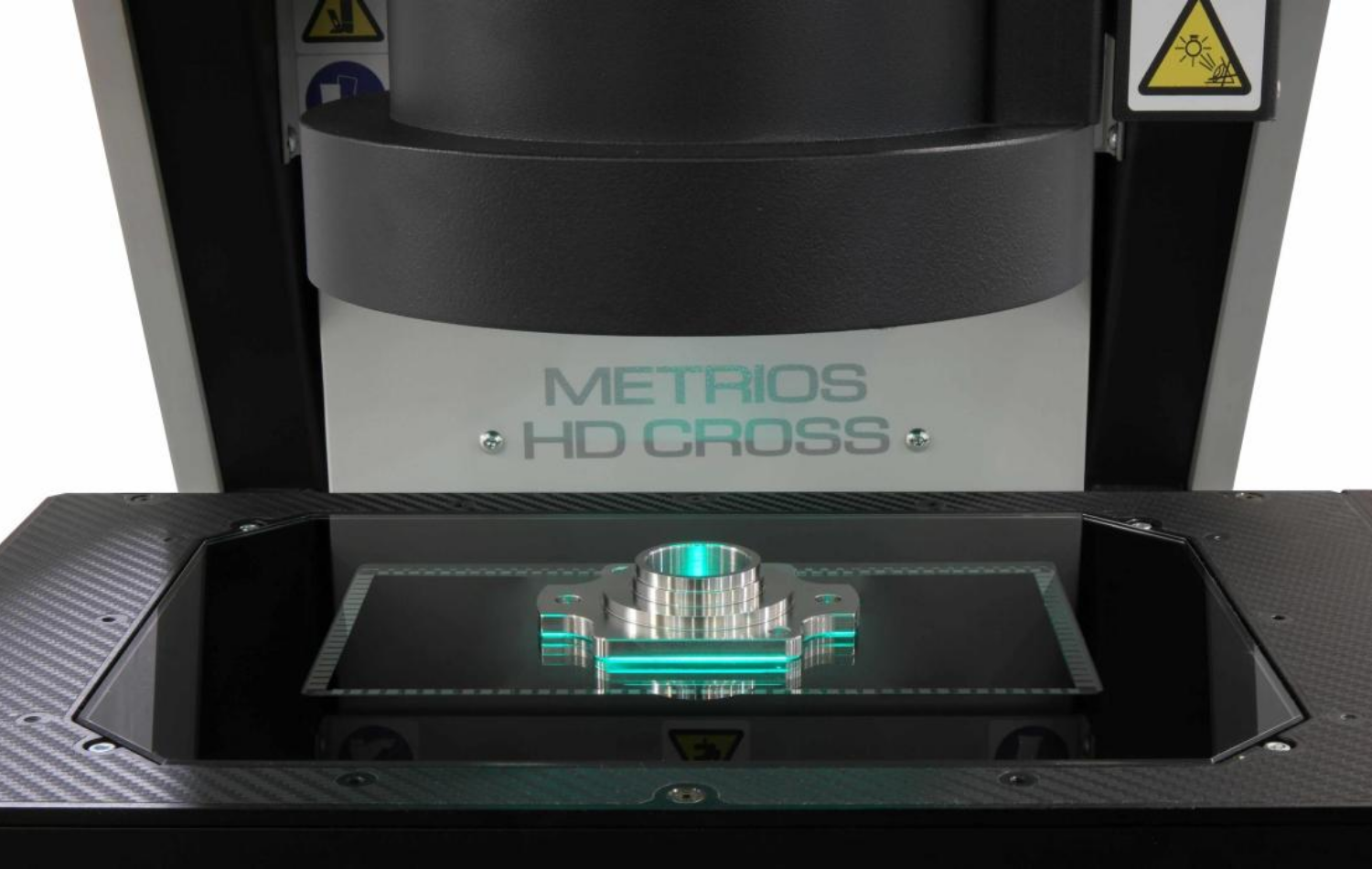

3D Height Measurement
METRIOS HD CROSS supports advanced 3D height measurement functionality for complete dimensional analysis.
The system can verify height consistency, inclination, flatness, and surface variations across inspected components.
From automotive to aerospace, from medical to micro-components; the Metrios optical measuring tool allows you to check both single and multiple parts to obtain all the measurements you need.
All five models in the Metrios range cover different sizes and accuracies, making it easy to measure precision mechanical parts. All the experiences that come from our partnerships allow us to find alternative solutions to traditional mechanical measuring instruments.
Optical measuring machines represent the evolution of manual measuring systems and optical comparators by providing the user with a significant reduction in costs and scrap. Investing in an optical measuring machine allows companies to make a significant step forward in productivity, ensuring better profits from a reduction in rejects.

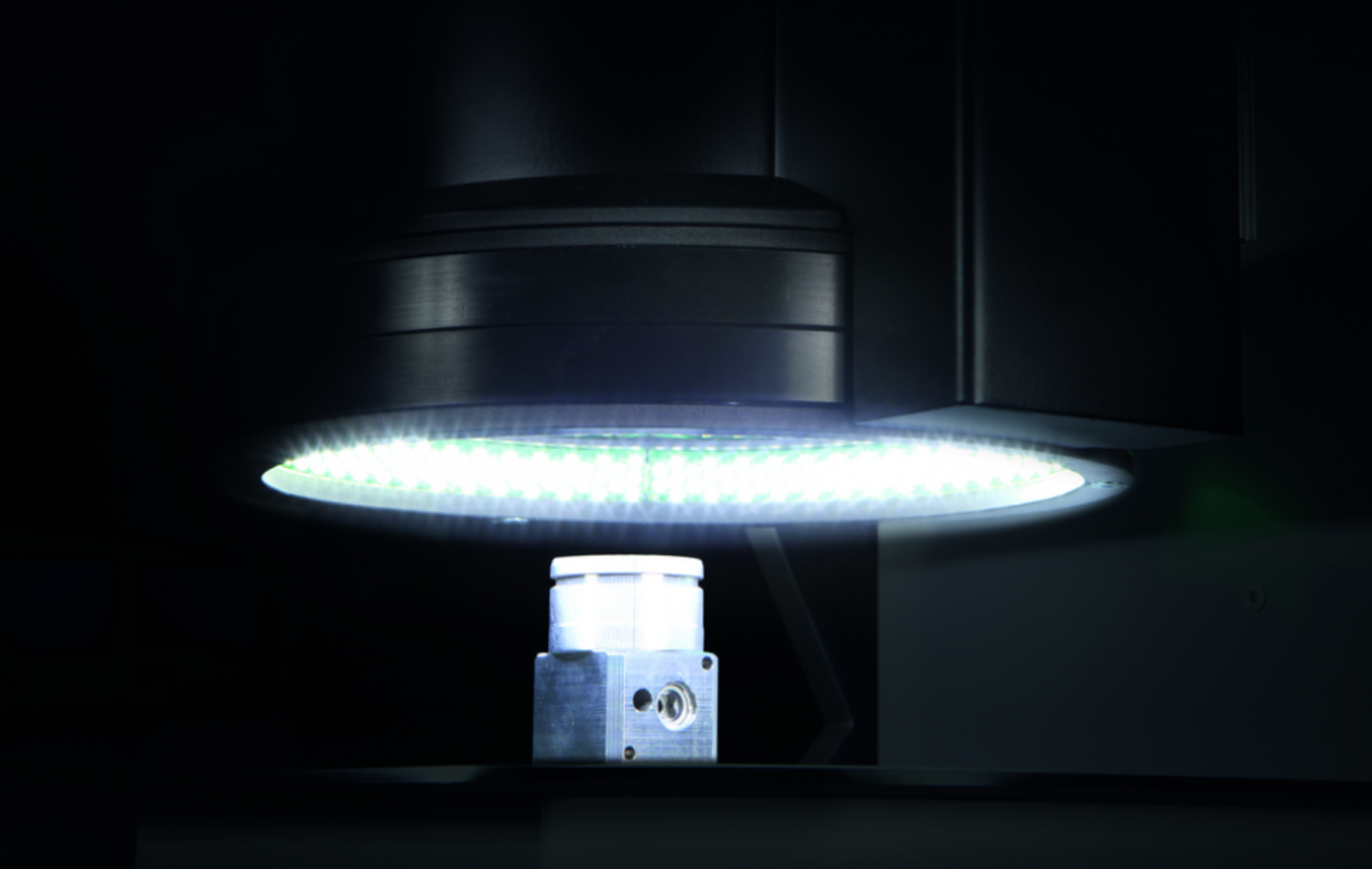

Advanced Lighting System
METRIOS optical systems use high-resolution cameras combined with multiple lighting technologies for precise non-contact measurement.
A motorized ring light system automatically changes illumination angles during measurement cycles to capture accurate results even on reflective or difficult surfaces.

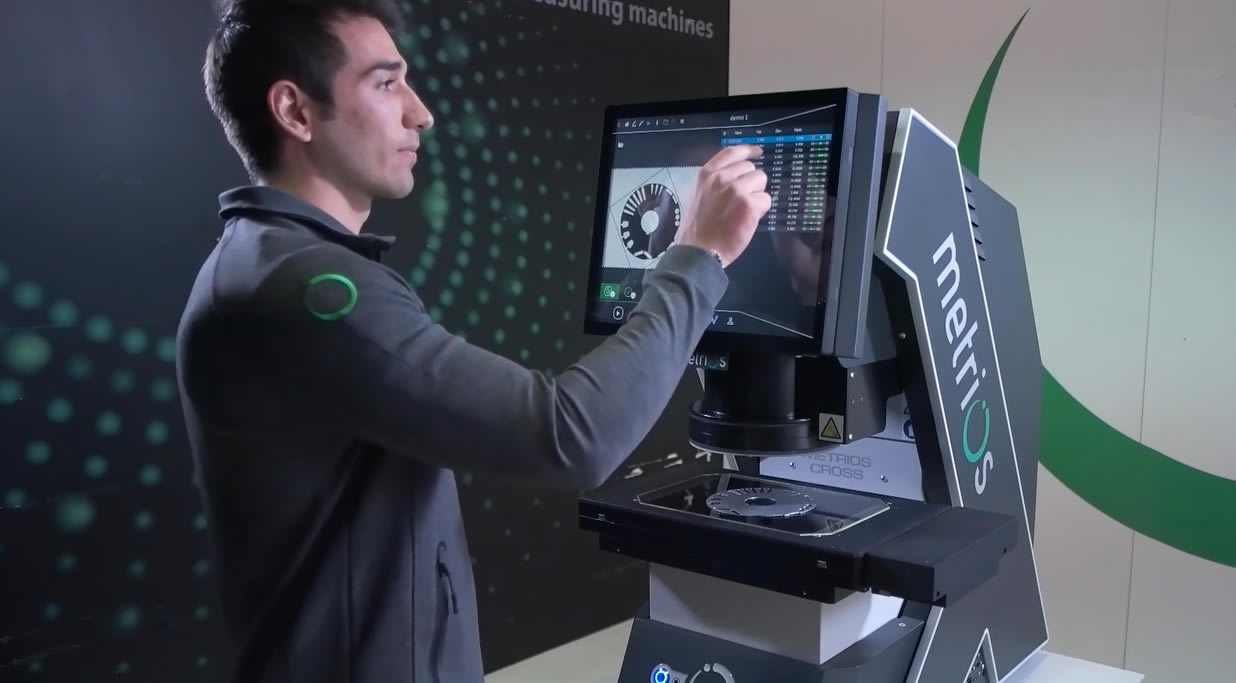

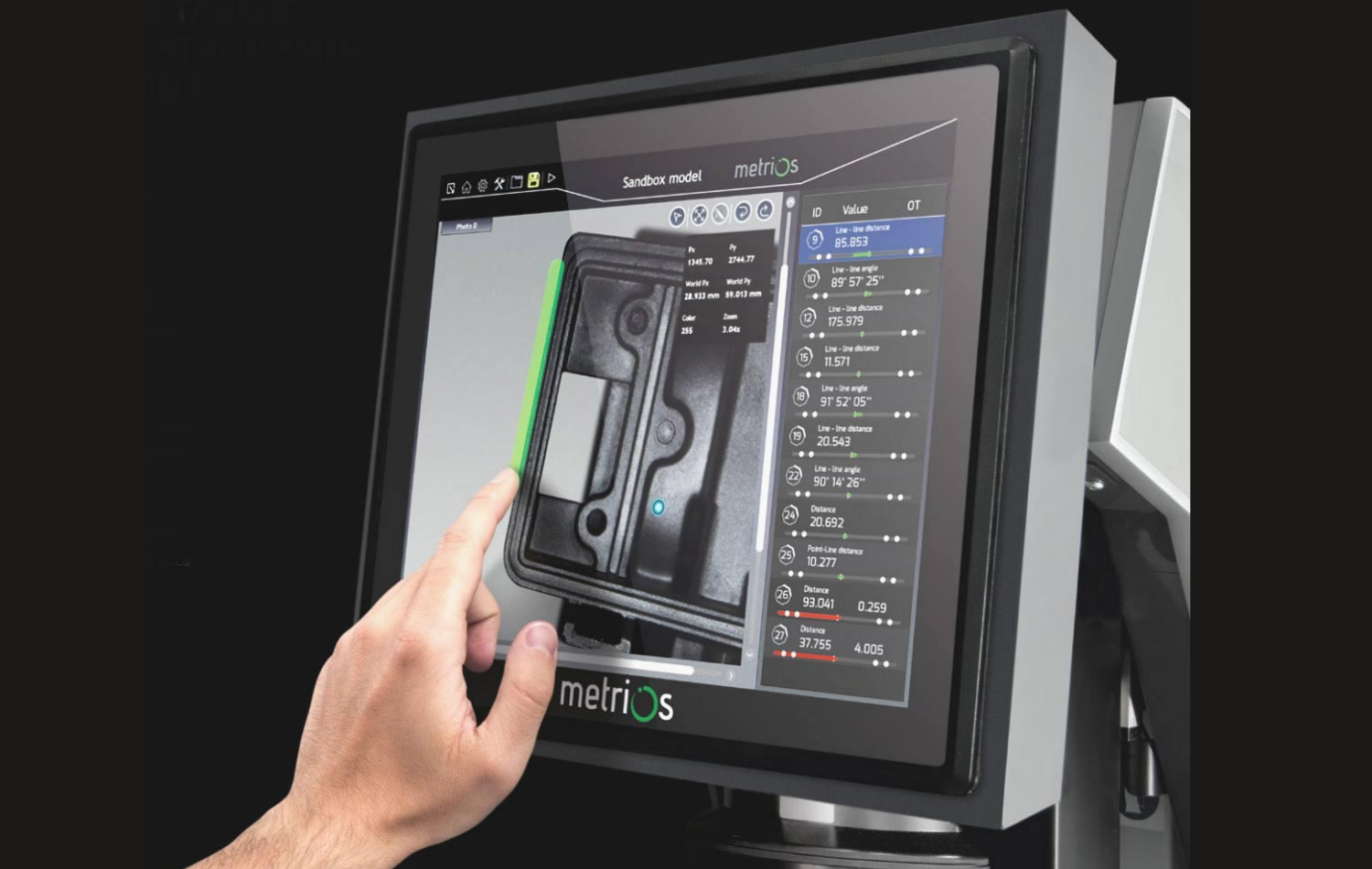

Easy as a Tablet, Powerful on the Shopfloor
- Industrial 17-inch multi-touch display
- User-friendly software interface
- Rugged alloy steel construction
- Suitable for direct production environments
- Comfortable loading and operating area
METRIOS Range Overview
- METRIOS – High resolution for small components
- METRIOS HD – Ultra-high resolution for micro details
- METRIOS CROSS – Sliding stage with large working area
- METRIOS HD CROSS – Highest precision with X-Y sliding stage
2. Applications
METRIOS optical measuring systems are designed for a wide range of industrial applications requiring fast and reliable dimensional inspection.
Traditional measuring tools and manual inspection systems often struggle to meet modern quality requirements. METRIOS provides automated, high-speed optical inspection for consistent and accurate results.
Sintered Parts Inspection
METRIOS supports manufacturers of sintered components with dedicated optical measurement solutions for precision gear and powder metallurgy applications.
Advanced measurement tools help manufacturers maintain high quality standards while improving inspection speed and repeatability.

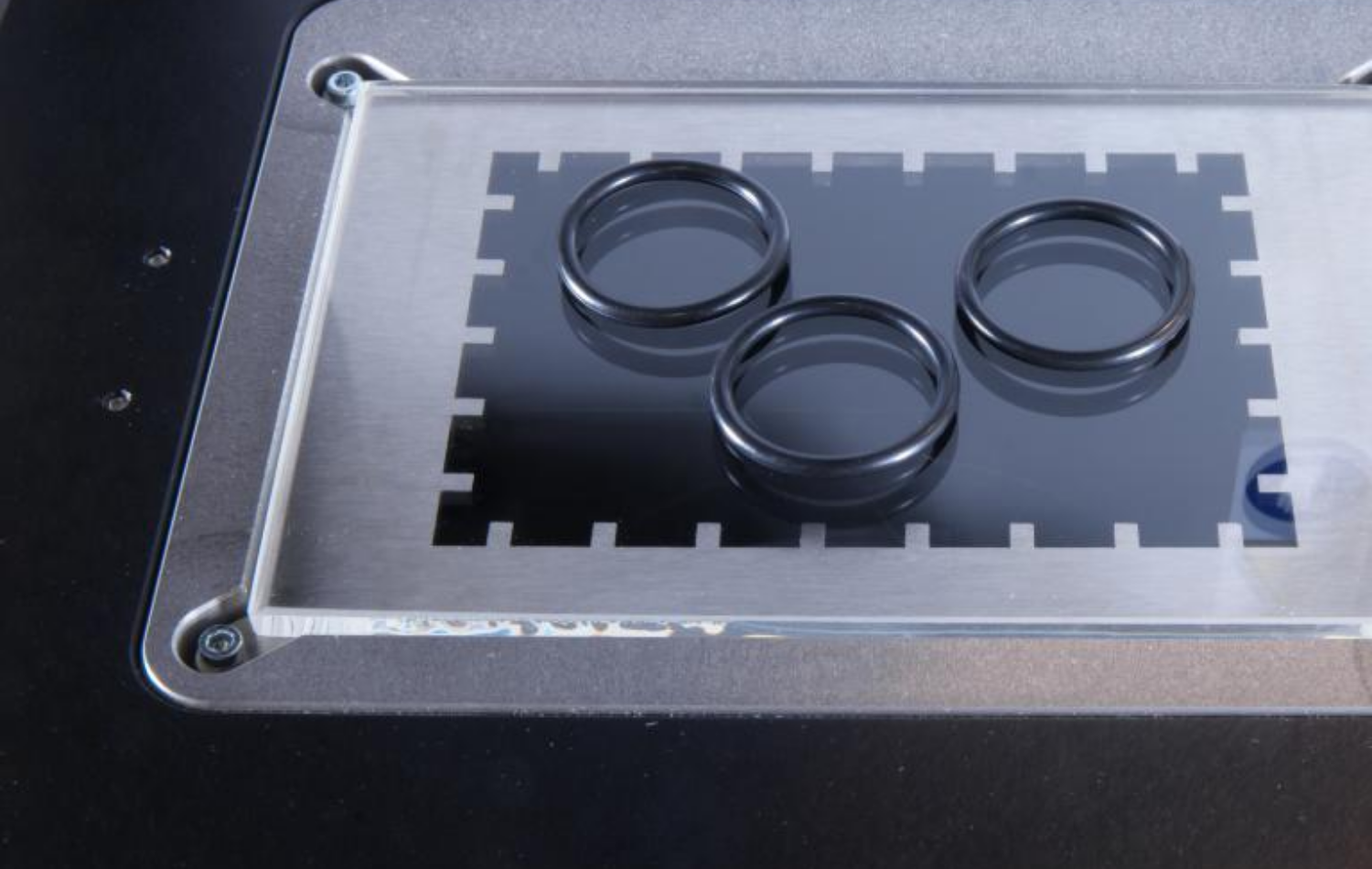

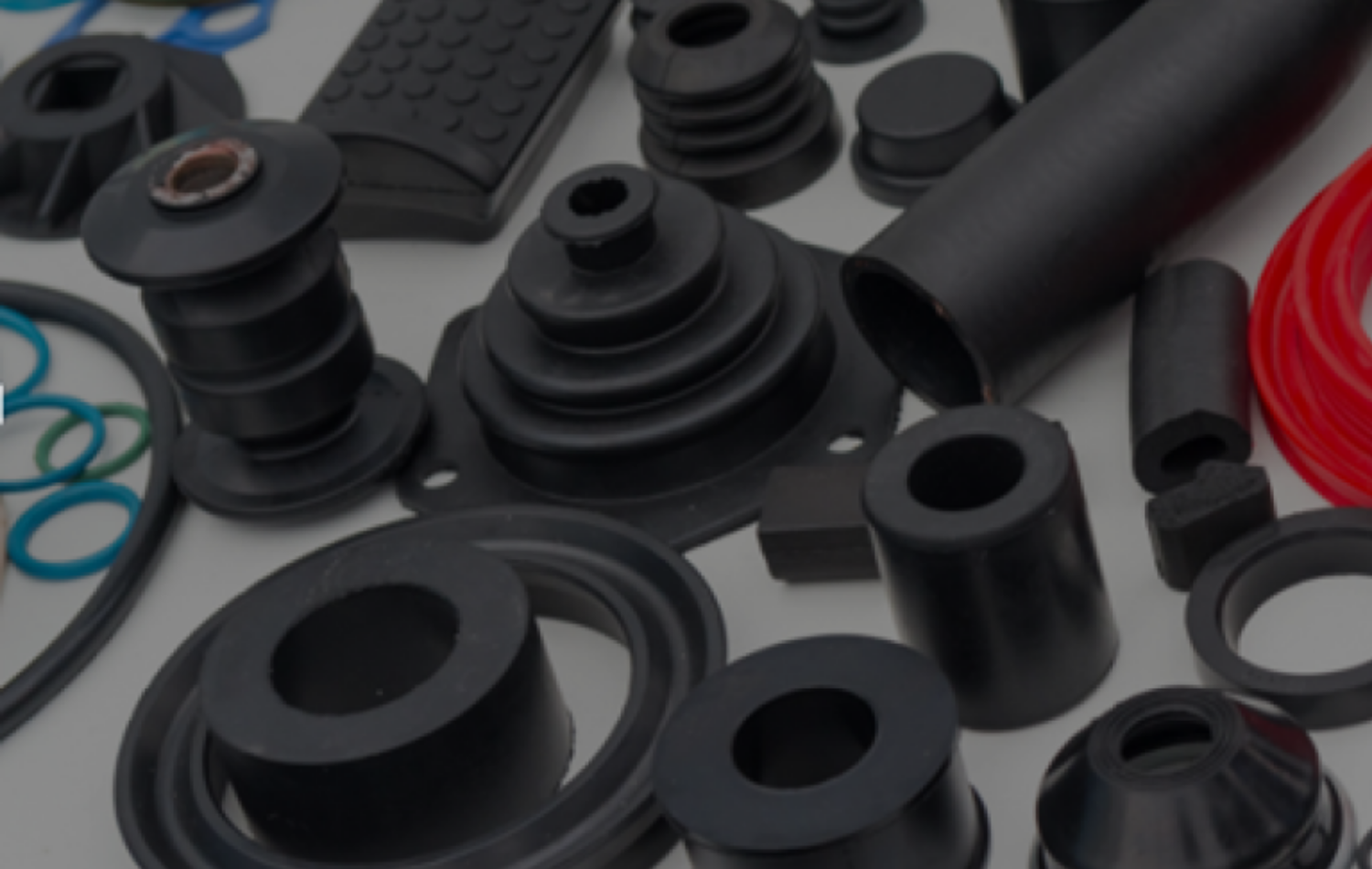

Gaskets
METRIOS systems are ideal for dimensional inspection of rubber gaskets, seals, and technical elastomer components.
Manufacturers can improve quality verification, reduce manual inspection, and provide certified measurement data to customers.

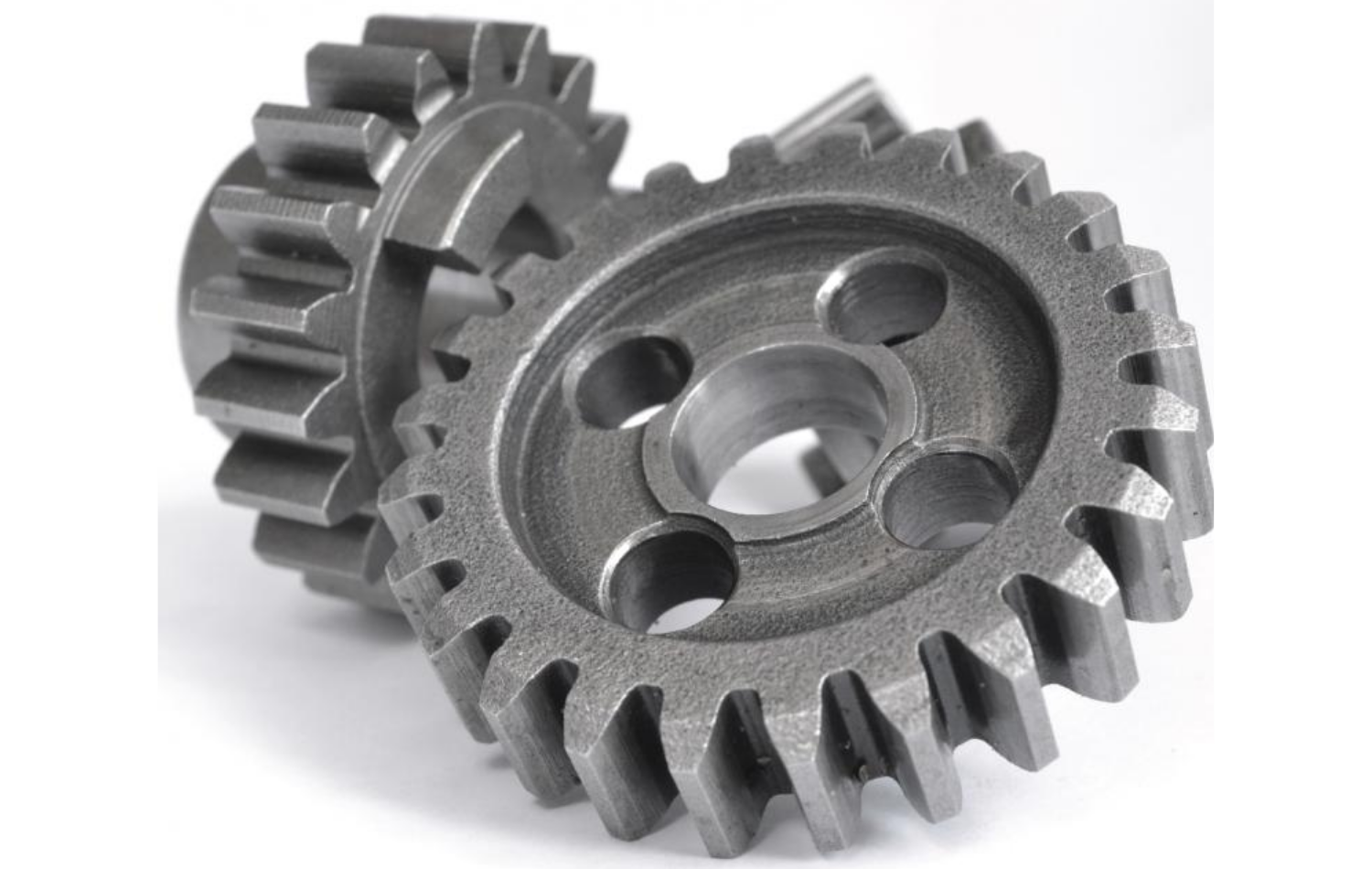

Gear Measurement
Optical measurement technology provides accurate inspection solutions for gears and precision transmission components.
METRIOS enables fast dimensional verification of gear profiles, tooth geometry, and precision mechanical features.
